SPECIFICATIONS

Application: Alternator,Genset,Diesel Generator
Brand Name: ezhiyuan
Generator Type: Diesel Generator
MOQ: 1pcs
Model Number: DSE335MKII
Packing: Carton
Place of Origin: Fujian, China
Product Name: Original Deep Sea DSE335 Auto Transfer Switch Controller
Quality: High-Quality
Stock: YES
Type: Control Panel
Warranty: 1 Year


Product Description

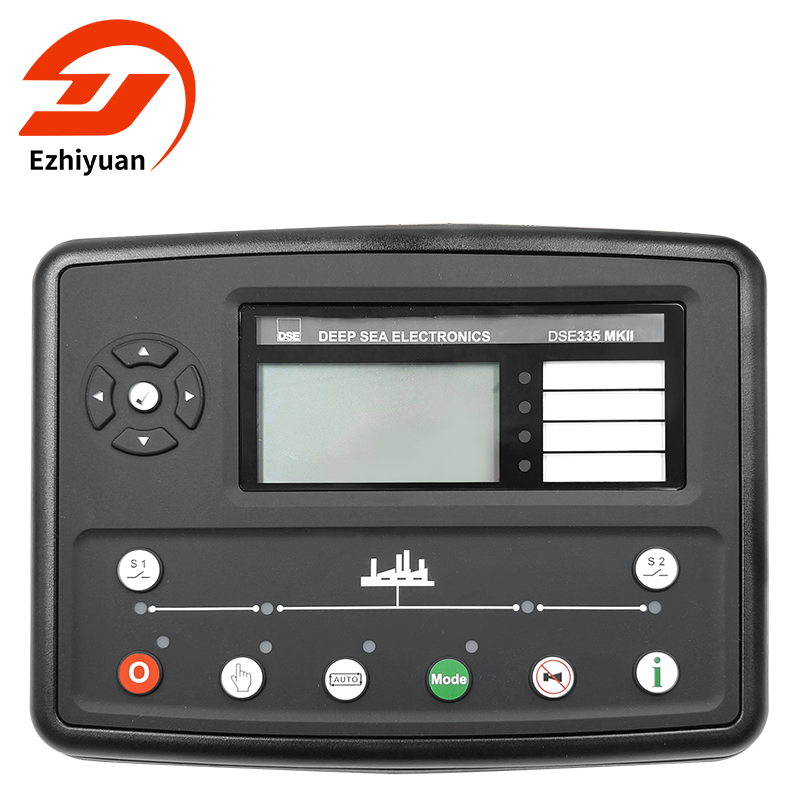

ORIGINAL Auto Transfer Switch Control Module DSE335  Deep Sea Controller






Description
Auto Transfer Switch Control Module


Place of origin
U.K


Type
DSE355




The DSE335 Automatic Transfer Switch Control Module has been expertly developed to monitor the voltage and frequency of an incoming AC supply from two different sources. These sources can be generator or mains (utility), or a combination of both. The control module monitors Source 1 (S1) and Source 2(S2). When a failure occurs a start command is issued to the inactive source to take over the load. The module will return the load to the mains (utility) as soon as this becomes available.

OVERALL SIZE
240 mm x 181 mm x 42 mm (9.4” x 7.1” x 1.6”)
PANEL CUTOUT SIZE
220 mm x 160 mm (8.7” x 6.3”)
MAXIMUM PANEL THICKNESS
8.0mm (0.3”)
WEIGHT
